41AA1600 Motor Protector

Hotline: 0086-21-67697100
Email: sales@goldair-control.com
Skype: qw_jsjh
Add:   700 YinQing Road
             Sungkiang High-Tech Park
             Shanghai China

Not what you are looking for?

Please contact our online customer

service if you cannot find the expected

products. We will reply as soon as possible.

Part-No. Supply voltage Order No.

41AA1600E AC 120/240V 16G08 41A 0E

41AA1600A AC 24V 16G08 41A 0A

Main data

Supply voltage: AC 24V, AC120/240V
Undervoltage limits :16.5V,85V/170V
Permitted ambient temperature: -40…+70°C
Temperature measuring circuits: Type 3 PTC sensors acc. to DIN 44081, DIN 44082 in series
Temperature measuring circuits: R_{_trip} 13kΩ ±3kΩ / R_{_reset} 3.25kΩ ±0.5kΩ
Relay: AC 240V 2.5A C300 AC/DC 24V 20mA
Mechanical service life : Approx. 1 million switching cycles
Time delay : 2min ±20%
Protection class : IP00
Connection type : 6.3mm flat plugs
Housing material PA66 GF25
Mounting Screw mounted
Dimensions :76.5x81.5x34.5(mm)
Weight: Approx. 200g

The electric motor protector is designed to protect against:

excessive motor winding temperatures by monitoring the resistance of positive temperature coefficient (PTC) thermistors embedded in the windings.
low voltage operation: The supply circuit operates on either 115v or 230V, 50、60Hz automatically -no external preselection is necessary. A wide ambient temperature range as well as high availability are further positive aspects.

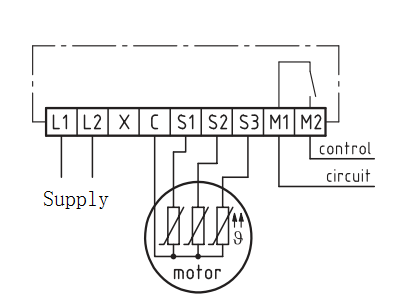

wiring diagram
