GPF1520 Flow relay module

Hotline: 0086-21-67697100
Email: sales@goldair-control.com
Skype: qw_jsjh
Add:   700 YinQing Road
             Sungkiang High-Tech Park
             Shanghai China

Not what you are looking for?

Please contact our online customer

service if you cannot find the expected

products. We will reply as soon as possible.

Order Supply voltage

17G08 GPF10 AC230V,5VA

17G08 GPF 11 AC/DC24V,3VA

Technical date

input: 2NC;

relay output: max ac 240V, 2.5A, C300; Min. Ac/DC >24V, >20mA

Delay: 120S(running times); 15s(oil flow signal jitter)

Connect: 2xAWG20 L-500mm(running signal);

Application

Mainly used for filtering and amplifying of oil flow relay signals in screw compressor.

Also protect and self lock when the oil flow module fails, effective protection of the compressor.

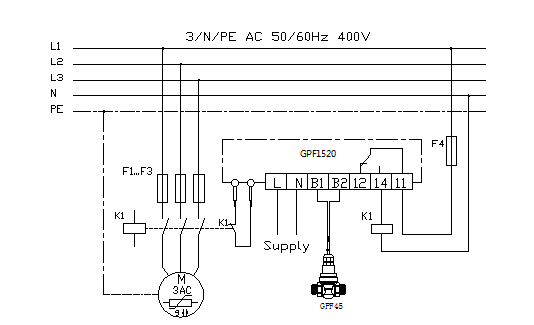

Wiring diagram
