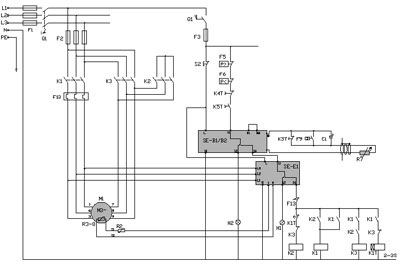

Oil flow monitoring with SE-B1/B2
GPF45 Oil flow switch
Application
—oil flow monitoring with SE-B1/B2

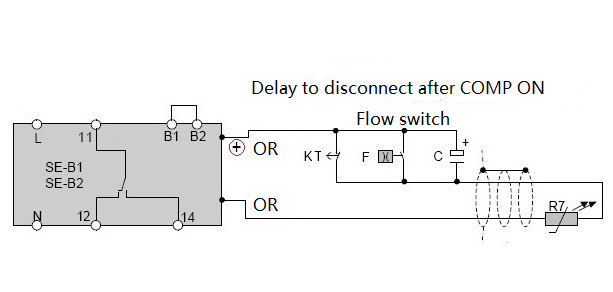

Using the C electrolytic capacitor together with an additional time delay KT will allow a temporary bridging of the monitoring function.
Please note: The C electrolytic capacitor will e destroyed if mounted with wrong polarity! Measure the polarity of the two leads and connect the C according to the following diagram.
C capacity is 1000 u F, the delay time is about 3 s.
-
Oil flow switch...
Used for Semi hermetic screw compressor ,Switching point : 10 l/min descending off H2O Part-No.680346
-
Oil flow switch...
Used for Semi hermetic screw compressor ,Switching point : 6 l/min descending off H2O Part-No.680345
-
Oil flow switch...
Used to screw compressor.Switching point : 4 l/min .
-
Oil flow switch...
Used to screw compressor. Switching point : 2.5 l/min .
-
SE-B1 Motor protector
Use for Octagon compressor Part-No.34701910, 34701901, 34701902
-
SE-B2 Motor protector
4- and 6- Cylinder compressors Part-No.34702701 34702710 34702702
-
SE-E1 Compressor...
Use for screw compressor, Part-No.34701710 34701701 34701702
