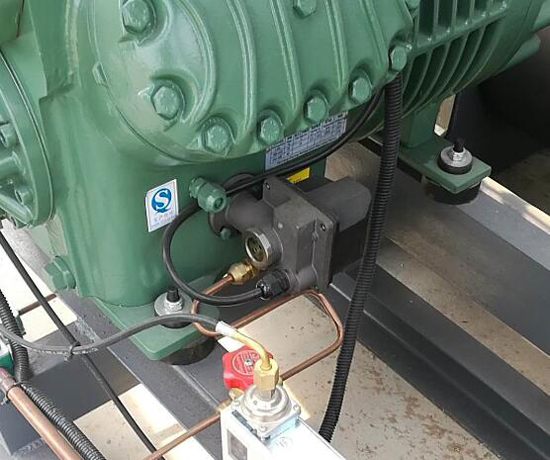

Today, let's see our main product OUT280 Oil Level Regulator, used for compressor system.

OUT280 Oil Level Regulator Technical Specifications:
* Dual voltage: AC 24V 50/60Hz±10% 15V; AC115V 50/60Hz±10% 15VA; AC 230V 50/60Hz±10% 15VA
* Permitted ambient temperature: -30..+60℃
* Medium temperature: -30...+100℃
* Operating pressure: -1...46bar
* Differential pressure: 1...25bar (across valve)
* Output relay: AC 240V 2.5A C300
* Mechanical service life: Approx. 1 million switching cycles
* Connecting cable: 6xAWG18 (0.75mm2); length 1m
* Protection class : IP65
* Housing material: Aluminium; PA66/PA6, glas-fibre-reinforced
* Flange connection: 3-/4- hole flange
* Oil connection: 7/16’’-20 UNF
* Permitted oils: Standard mineral and ester oil, without additives
* Permitted refrigerants: All non-corrosive, non-flammable; standard refreigerants
