OUT69 Motor Protector

Order No. 16G08 069 10

Supply voltage: AC 200-240V ±10% 3VA
Permitted ambient temperature -30…+70°C
Temperature measuring circuits(Type): 1-9 PTC sensors acc. to DIN 44081, DIN 44082 in series
Temperature measuring circuits:

-R_trip: 4.5kΩ ±20%, R_reset: 2.75kΩ ±20%

Output relay: 1SPDT, AC 240V 2.5A C300 AC/DC 24V 20mA
Mechanical service life : Approx. 1 million switching cycles
Dimensions: 53x33x68(mm)

Product Details
PDF Document
Inquiry Now

OUT69 motor protection module matches with PTC sensor and available for all kinds of motor which needed overload(overheat)protection.

When the temperature of the monitored areas exceeds the nominal response temperature respective PTC-sensor, the resistance of sensor changes rapidly into higher state.

The relay of OUT69 module release and switch contactor off so as to give protection to motor. This module resets when the temperature drop 3K(total resistance approximate 2.7KΩ)

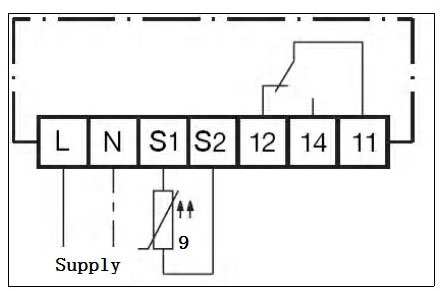

wiring diagram
