PT100 Temperature sensor

Hotline: 0086-21-67697100
Email: sales@goldair-control.com
Skype: qw_jsjh
Add:   700 YinQing Road
             Sungkiang High-Tech Park
             Shanghai China

Not what you are looking for?

Please contact our online customer

service if you cannot find the expected

products. We will reply as soon as possible.

Order No.

1.5m: 17G10 P01 01

500mm: 17G10 P01 02

Technical datas

Sensor type: Linear temperature sensor

Insulation test voltage U_is: 2.5kV

Protection class acc. To EN 60529: IP65

Recommended measuring current for self-heating<0.1K: DC 1-3mA

Sensor resistance at 0°C: 100Ω ±0.1Ω

Change of resistance 0-100°C: 0.0385Ω/K

Permitted ambient temperature: -50…+200°C

L1 in mm: 500 or 1500

PT100 temperature sensors is used for measuring temperatures in technical applications.

High-quality PT100 temperature sensors minimise measuring errores and usually do not reuqire calibration.

Specifications depend on tpe and material. The especially small dimesnions ensure a quick thermal response.

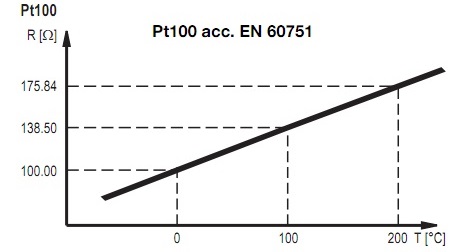

Characteristic line
