OUT69 TM Motor protector

Order No. 16G08 TM1 01

Supply voltage: AC 230V ±10% 3VA
Permitted ambient temperature -30…+70°C
Temperature measuring circuits(Type): 1-9 PTC sensors acc. to DIN 44081, DIN 44082 in series

Temperature measuring circuits:

-R_trip: 4.5kΩ ±20% / -R_reset: 2.75kΩ ±20%

Output relay: 1SPDT, AC 240V 2.5A C300 AC/DC 24V 20mA
Mechanical service life : Approx. 1 million switching cycles
Dimensions: 53x33x68(mm)

Product Details
PDF Document
Inquiry Now

Application

Due to the compact dimensions, the motor protector OUT69 TM is suitable for the mounting into the terminal box of an electric motor. It is characterized by high reliability and availability.

Function description

Matches with PTC sensor and available for all kinds of motor which needed protection.

Up to 9 PTC-sensors according to DIN 44081/082 with different nominal response temperatures can be connected in series to the measuring circuit input of OUT69 TM. Hence it is possible to monitor one or several motor drive units (e.g. motor windings, gear drives, shaft bearings) for thermal overload with only one OUT69 TM motor protector. If the temperature in one of the areas monitored exceeds the nominal response temperature of the respective PTC-sensor, the sensor resistance increases and the OUT69 TM motor protector switches the motor contactor off. After fall below back switch-point the module resets, a 5-minute delay period begins. when this period has expired, the module resets. The relay switch output is designed as a potential free change-over contact.

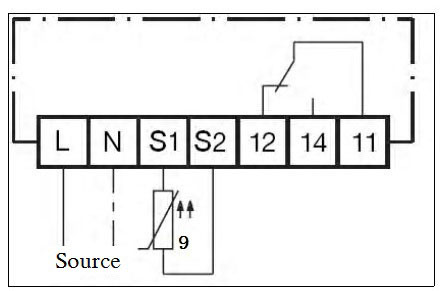

Wiring diagram
